User Manual

Introduction
- Product Overview
- What’s Included in the Box
- Key Features
- Charging the Remote
Key Specifications
Getting Started
- Charging the Fin
- Turning On the Fin
- Turning Off the Fin
Pairing Fin to Remote

Pairing Instructions

Remote Information

Light Indicators
Direction Changes

Warranty Information
Precautions & Safety
Maintenance & Care
- Cleaning
- Storage
Contact Information

1. Introduction

a. Product Overview

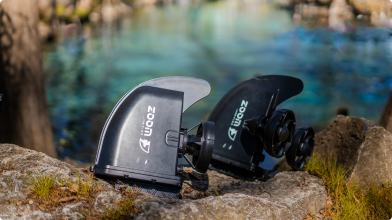

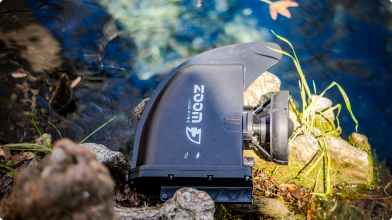

Zoom Fins — Designed for inflatable standup paddle boards (iSUPs) enhancing steering, stability and propulsion.

b. What’s Included in the Box

1 Zoom Fin
Charging Adapter
1 Charging Cable
1 Rechargeable Remote with wire (Type C)
1 User Guide

c. Key Features

Simple Installation
Durable Construction
Effortless Navigation
Efficient Paddling

2. Key Specifications

Specification	Model ST	Model DT
Attachment Style	Flip lock fin adapter	Flip lock fin adapter
Battery Life	Up to 60 - 90 mins	Up to 45 - 60 mins
Battery Type	Li-ion 10,000 mAh	Li-ion 10,000 mAh
Charging Time of Fin	4 hours full charge	4 hours full charge
Fin Weight	4.872 lbs	5.952 lbs
Dimensions (LxWxH)	291x131x322 mm	307x311x322 mm
Material	ABS Plastic	ABS Plastic
Motor Maneuvering	3 Forwards, 1 Reverse	3 Forwards, 1 Reverse, Right and Left
Near Me Feature	Yes	Yes
Motor Power	Single motor 650 watts	650 watts each motor
Remote/App Control	Yes	Yes
Shock Resistant	Yes	Yes
Motor Speed	3 mph	5 mph
Thrust	29 lbf	29 lbf each motor
Minimum Depth	2 feet (24 inches)	2 feet (24 inches)
Motor RPM	6000	6000 each motor

3. Getting Started

a. Charging the Fin

Make sure to keep the charging slots of the charger and the fin dry and securely capped at all times during use.

Remove the plastic protective cap from both the fin and the charging wire.
Connect the charger to the fin, and then plug the charger into a power outlet.
Wait approximately 4 hours for the fin to become fully charged.
Check the remote for a green light indicator, which signals that the fin is fully charged.

b. Turning On the Fin

Take the magnet and hold it against the filled bolt symbol until you hear a sound to activate the fin.

c. Turning Off the Fin

Take the magnet and hold it against the hollow bolt symbol for 2 to 3 seconds to turn off the fin.

d. Charging the Remote

Connect the Type-C charger to the remote and plug it into a power outlet.

4. Pairing Fin to Remote

a. Pairing Instructions

Ensure the remote is switched on, indicated by the red light labeled "POWER ON."
Place the remote near the fin to automatically establish a connection.
Once connected, the light will turn blue.
The devices are now successfully paired.

5. Remote Information

** When operating in reverse mode, you cannot switch directly to forward mode. First, press the 'Stop' button to halt the fin's movement. After the fin has stopped, you may then select any of the forward mode options. However, if the fin is in forward mode, you may switch directly to reverse mode without stopping.

a. Light Indicators

Red light (steady): The device is powered on.
Blue light (steady): The device is paired and ready to use.
Green light (steady): The fin is fully charged.
Red and blue light (blinking): The fin is at 50% charge.
Red light (blinking): The fin is at 25% charge.
